Secrets Management Part 3 – Storing and Retrieving Secrets from macOS Keychain

Why bother?

• In Part 1 we started to securely manage secrets as environment variables with direnv.
• In Part 2 we stopped keeping them in plaintext by storing them using gopass and GPG encryption, and loading them from your .envrc file.

This post gives macOS users another option: Keychain, the secret store built into macOS.

Keychain vs gopass

Both options do the same thing: securely store a secret that can then be loaded into your shell ready for use in scripts and applications. gopass (or rather GPG with a hardware token) does come with some downsides, though.

gopass stores each secret in its own GPG-encrypted file. If you're loading multiple secrets and variables in a .envrc file and using a hardware token such as a YubiKey (which you should) with a touch policy configured (which you should), you have to unlock gpg-agent, then touch your hardware token for every secret. Call me lazy, but this soon becomes cumbersome.

Your login keychain, on the other hand, is an encrypted file on your device that is unlocked with your login password when you sign in. It stays unlocked for the whole session by default, but you can set it to lock after a period of inactivity or when the device sleeps. Once it is unlocked, your shell can access the secrets.

The main differences between the two:

Keychain edges it for me when on macOS for the following reasons:

• Fewer pinentry prompts and hardware token touches (especially when direnv is loading nested .envrc files as I'm moving through directories).
• No managing a separate GPG key pair.
• Keychain allows per-app access control, meaning I can be granular in which apps can access which secrets. (less useful when everything reads through the security CLI).

Security trade-offs

Keychain isn't a like-for-like swap for gopass and there are compromises to the more lightweight setup. Lunch is rarely free.

Once the login keychain is unlocked, anything running as your user can read your secrets without a prompt, including any compromised packages or extensions.

You can, however, start to mitigate this with your keychain config:

• Set the keychain to lock when the Mac sleeps.
• Configure a lock timeout on the keychain.
• Use a separate keychain with its own password.
• Where possible, use least-privilege scoped tokens to limit the blast radius if a secret does leak (the best defence for exposed secrets no matter what storage you're using).

Creating a separate keychain

My recommendation is to create a separate keychain from the login one to store secrets you will be using in development and with AI agents. This reduces a number of the risks we've already mentioned, and brings Keychain closer to the security posture of gopass, but with less friction.

Let's create a keychain that:

• Has a 900 second (15 mins) timeout.
• Locks when the Mac sleeps.
• Has a different password to your local macOS account password.

Start by creating the keychain. Keychain files are stored in the directory ~/Library/Keychains/ and have a .keychain-db extension:

security create-keychain ~/Library/Keychains/papermtn.keychain-db

You will be asked to create a password for your new keychain. Use something other than your local macOS password.

Next (in "setup steps no one asked for") you need to add your new keychain to the keychain search list. Use the -s flag of list-keychains which, annoyingly, doesn't append; it replaces the whole list. To get around this, use this command to read the current list and use xargs to enter that, plus your new keychain, as the keychain search list:

{ security list-keychains -d user; echo "\"$HOME/Library/Keychains/papermtn.keychain-db\""; } \
  | xargs security list-keychains -d user -s

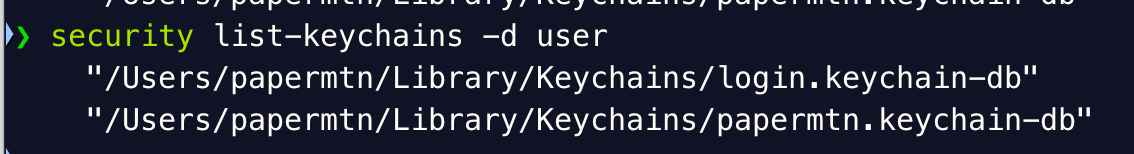

You can now see your new keychain when listing user keychains:

security list-keychains -d user

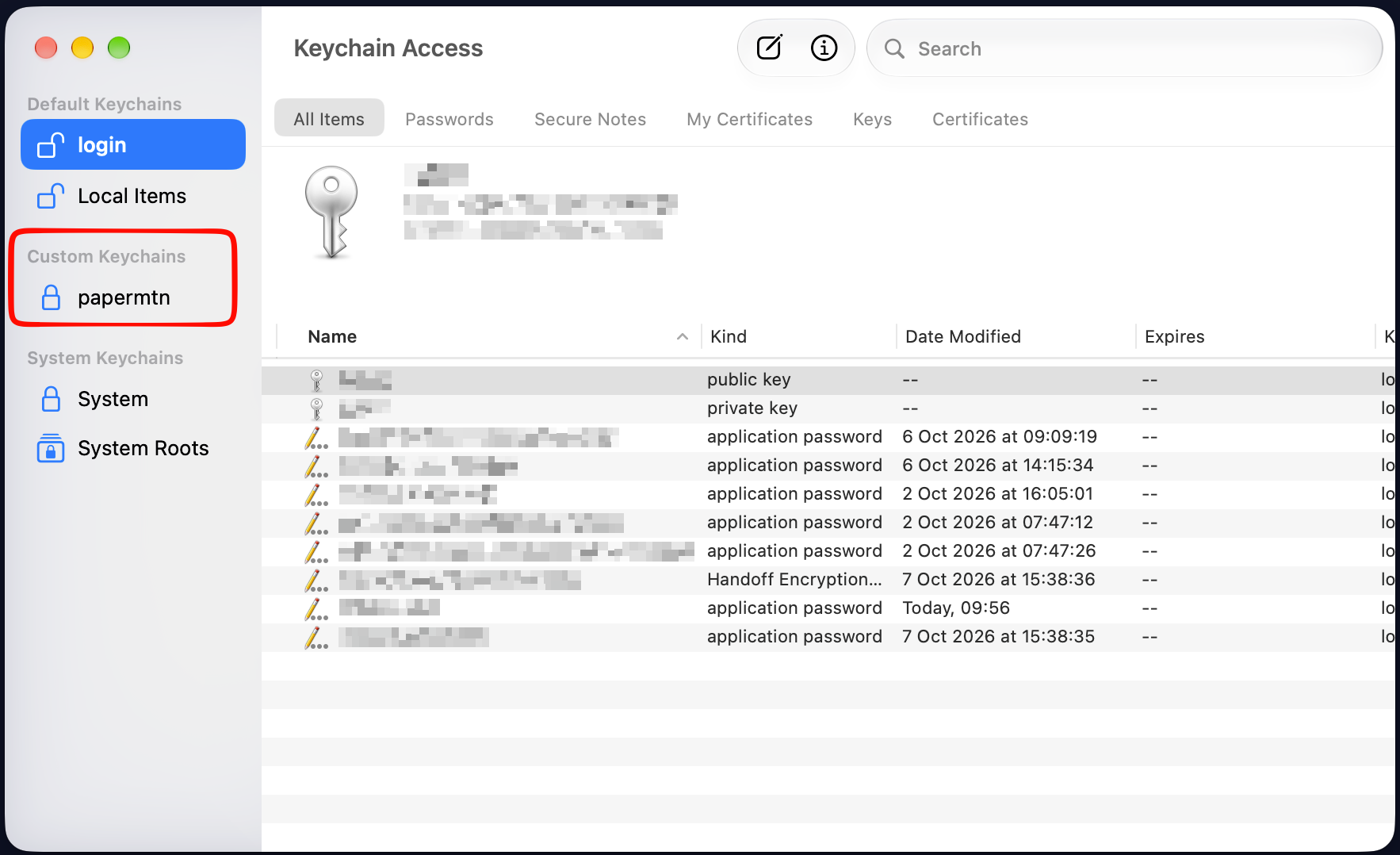

It will also now show in Keychain Access as a custom keychain

Now to apply our settings:

• -l - Lock keychain when the system sleeps.
• -u - Lock keychain after timeout interval.
• -t [timeout] - Specify timeout interval in seconds (omitting this option specifies "no timeout").

security set-keychain-settings -l -t 900 -u ~/Library/Keychains/papermtn.keychain-db

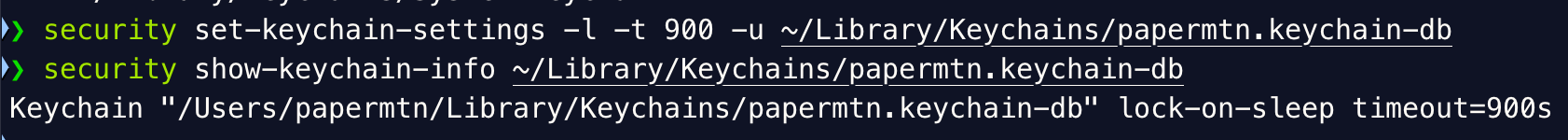

Then verify the settings have been applied:

security show-keychain-info ~/Library/Keychains/papermtn.keychain-db

I've put all of these steps together in a script you can use yourself (set your own values for KC_NAME and TIMEOUT):

KC_NAME="dev-keychain"    # Update with your own name
TIMEOUT=900    # Update with your own timeout in seconds
KC="$HOME/Library/Keychains/${KC_NAME}.keychain-db"

# Create the keychain (you'll be asked for a password)
security create-keychain "$KC"

# Add it to the search list, keeping the existing entries
{ security list-keychains -d user; echo "\"$KC\""; } \
  | xargs security list-keychains -d user -s

# Apply settings
security set-keychain-settings -l -u -t "$TIMEOUT" "$KC"

# Check the result
security list-keychains -d user
security show-keychain-info "$KC"

Saving a secret

Adding a secret uses security's add-generic-password command. These are the details from the man page:

add-generic-password [-h] [-a account] [-s service] [-w password] [options...] [-A|-T appPath] [keychain]

This is what each flag means:

This is how I would create a secret in my new keychain:

security add-generic-password -a "$USER" -s "papermtn/slack/prd/bot-token" -U -w "ShhItsASecret" ~/Library/Keychains/papermtn.keychain-db

I've saved my secret, but you may have spotted an issue... we've got a plaintext secret in our command. This is due to a contradiction in how the security client works:

• The -w flag says it must come at the end to prompt the user for the secret.
• add-generic-password's man page says that the keychain must come at the end.

Don't worry, the solution to this turns out to also be the solution to another quirk of the security client...

The getpass() gotcha

When you use a bare -w and let security prompt you for the secret, it reads your input with with macOS’s getpass(), inherited from BSD. getpass() discards anything beyond 128 characters without warning, so any secrets longer than that get truncated.

I’m going to create a secret using the prompt, with the 200-character string below:

A123456789B123456789C123456789D123456789E123456789F123456789G123456789H123456789I123456789J123456789K123456789L123456789M123456789N123456789O123456789P123456789Q123456789R123456789S123456789T123456789

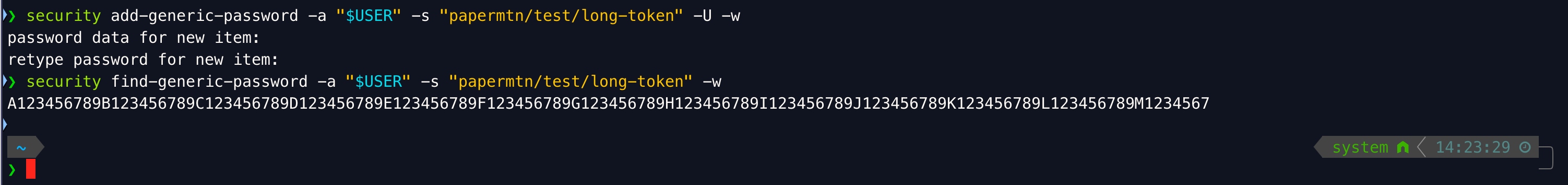

When viewing the secret, you can see it has been cut short:

So we've got two problems:

• The prompt can't take a keychain path after it.
• It can't take a long secret either.

The fix for both is the same: skip the prompt and pass the secret as the value of -w. Read it into a variable first to keep it out of your shell history:

read -rs "SECRET?Secret: " && echo
security add-generic-password -a "$USER" -s "papermtn/slack/prd/bot-token" -U -w "$SECRET" \
  ~/Library/Keychains/papermtn.keychain-db
unset SECRET

read -rs reads your input without outputting it to the screen, and unset clears the variable once you're done. You can now put the keychain path at the end of the command.

read has its own limit of around 1024 characters from the terminal input buffer. For secrets longer than that, copy the secret to your clipboard and pass it in directly, then clear the clipboard:

security add-generic-password -a "$USER" -s "papermtn/slack/prd/bot-token" -U -w "$(pbpaste)" \
  ~/Library/Keychains/papermtn.keychain-db
pbcopy < /dev/null

Naming convention

“There are only two hard things in Computer Science: cache invalidation and naming things.”
— Phil Karlton

gopass encourages a naming convention via its tree structure. Keychain allows slashes in secret names, and I strongly recommend you make use of them to stick to a naming convention. I use:

<owner-or-context>/<service>/<environment>/<secret-name>

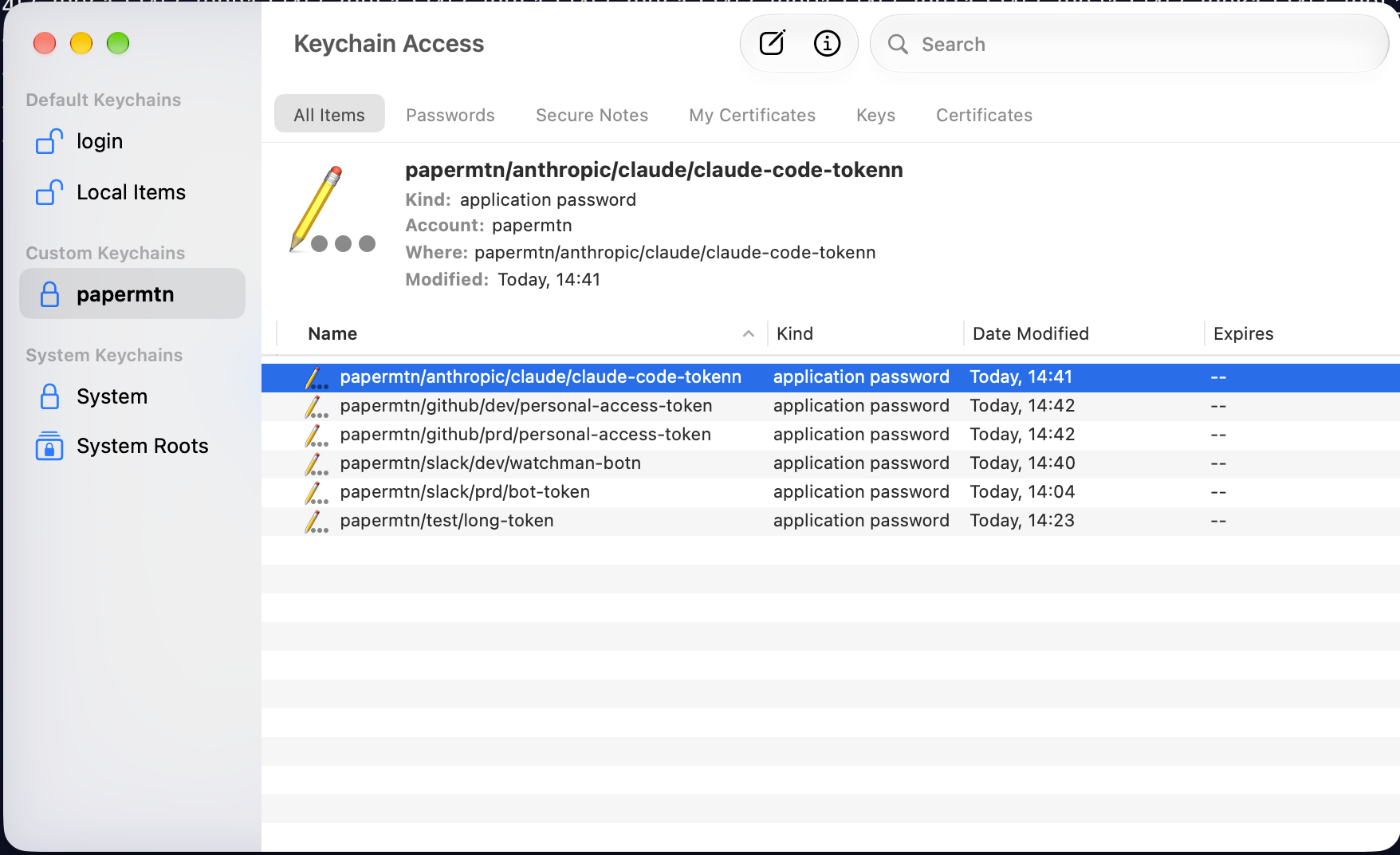

You have to fetch keychain secrets by their full name in the CLI, and the easiest way to find a secret you've forgotten the name of is in Keychain Access, which displays secrets in alphabetical order (meaning all of your related secrets will be kept together). You can also find all secrets for a service or organisation if you're using a naming convention.

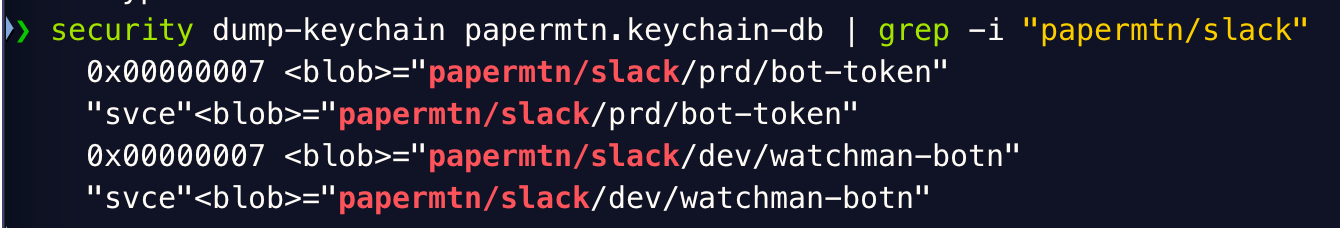

You can also use the CLI to dump the keychain and grep through it:

security dump-keychain papermtn.keychain-db | grep -i "papermtn/slack"

Future you will thank you for having a naming convention from the start.

Getting a secret

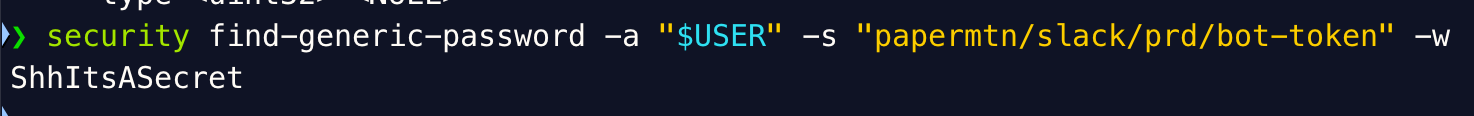

Getting a secret is straightforward, assuming you know the name:

security find-generic-password -a "$USER" -s "papermtn/slack/prd/bot-token" -w

Wrapping it in functions

You're probably thinking "this is way more complicated than gopass" and, at the minute, you're right. To simplify things let's wrap the commands in two functions that are easier to use. They'll live in one file in your dotfiles, and are sourced by both zsh and direnv:

• save-keychain-secret
• get-keychain-secret

First of all, put the following in ~/.dotfiles/shell/keychain.sh:

# ~/.dotfiles/shell/keychain.sh

# Helpers for storing and retrieving secrets in the macOS Keychain.
# Written to work in both zsh and bash so direnv can use them too.
# Sourced by zsh/.functions and direnv/direnvrc.

# Keychain to use.
# Change this to your own keychain's path, or delete the
# line to use the default keychain search list.
: "${KEYCHAIN:=$HOME/Library/Keychains/papermtn.keychain-db}"

# Get a secret from the macOS Keychain (generic password, account = $USER).
# Usage: get-keychain-secret <name>
get-keychain-secret() {
  if [ -z "$1" ]; then
    echo "usage: get-keychain-secret <name>" >&2; return 2
  fi
  local args=(find-generic-password -a "$USER" -s "$1" -w)
  if [ -n "${KEYCHAIN:-}" ]; then args+=("$KEYCHAIN"); fi
  security "${args[@]}" 2>/dev/null \
    || { echo "Keychain item '$1' not found (or keychain is locked)" >&2; return 1; }
}

# Save (create or update) a secret in the macOS Keychain.
# Usage: save-keychain-secret <name>               (prompts, hidden, asked twice)
#        pbpaste | save-keychain-secret <name>     (reads from stdin)
save-keychain-secret() {
  if [ -z "$1" ]; then
    echo "usage: save-keychain-secret <name>" >&2; return 2
  fi
  local secret confirm
  if [ -t 0 ]; then
    printf 'Secret for %s: ' "$1" >&2; read -rs secret; echo >&2
    printf 'Confirm: ' >&2; read -rs confirm; echo >&2
    if [ "$secret" != "$confirm" ]; then
      echo "Secrets did not match, nothing saved" >&2; return 1
    fi
  else
    secret="$(cat)"
  fi
  if [ -z "$secret" ]; then
    echo "Empty secret, nothing saved" >&2; return 1
  fi
  local args=(add-generic-password -U -a "$USER" -s "$1" -w "$secret")
  if [ -n "${KEYCHAIN:-}" ]; then args+=("$KEYCHAIN"); fi
  security "${args[@]}"
}

Note:

• $KEYCHAIN points both functions at your created keychain. Make sure you change this value, otherwise you will be looking for mine, and you shouldn't be on my laptop.
• There's no way to pass the secret as an argument, as that would put it in your shell history. Pipe long secrets: pbpaste | save-keychain-secret papermtn/slack/prd/bot-token.

Source the file from your .zshrc (or a file it loads):

source "$HOME/.dotfiles/shell/keychain.sh"

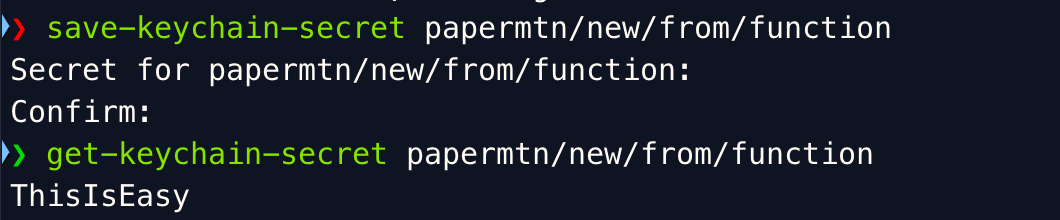

Then usage is simple:

save-keychain-secret papermtn/new/from/function
get-keychain-secret papermtn/new/from/function

Using the functions with direnv

The last part is to make sure our functions work with direnv in our .envrc files. direnv doesn't run your .envrc in your interactive shell; it runs it in a separate bash subprocess that doesn't use functions from your .zshrc.

You can define a config file for direnv, though: ~/.config/direnv/direnvrc. direnv loads this before every .envrc. Source the shell file in here:

# ~/.dotfiles/direnv/direnvrc
# Symlinked to ~/.config/direnv/direnvrc and sourced by direnv before every .envrc.

source "$HOME/.dotfiles/shell/keychain.sh"

Then symlink it into place:

mkdir -p ~/.config/direnv
ln -sf ~/.dotfiles/direnv/direnvrc ~/.config/direnv/direnvrc

Then your .envrc can use the function to load the secret into variables:

export SLACK_TOKEN="$(get-keychain-secret papermtn/slack/prd/bot-token)"

Wrapping up

You should now have:

• A dedicated keychain with its own password, which locks on sleep and after 15 minutes of inactivity.
• Two functions for saving and getting secrets, shared between your shell and direnv.
• .envrc files that load secrets from Keychain, with no plaintext secrets in them.

If you're a current gopass user on macOS, this may look like a lot of effort for a similar end result. Arguably that's true, but after a one-time setup of your keychain and the functions to wrap the save and get commands, you should find this workflow fairly frictionless. For my use case, I find it easier than gopass, but your mileage may vary.

You can also adapt the setup to suit you. Use the login keychain if you'd rather have no timeout at all, adjust the timeout on your separate keychain to fit how you work, or mix the two approaches, keeping high-value production secrets in gopass behind a hardware token, and using Keychain for everything else.

If you've landed here first, Part 1 covers loading secrets with direnv, and Part 2 covers encrypting them with gopass and GPG. Make sure to give them a read.
